Corvette LT4 Supercharger to LS3 LSA Square Port Head Adapter Kit

Compatible with 2015-2019 LT4 Corvette superchargers only

• Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)
• Measures 10.125" from top of engine block to top of Camaro supercharger lid (13.0" for Escalade V supercharger)
• The worlds first LT4 supercharger to LS adapters that allow the use of standard LS port injection
• These LT4 supercharger adapters bolt directly on to any LS rectangle port head (LS3, L99, LSA, L94, L76, L77, and many others) and includes bracketry and fuel rails to utilize LS3 length injectors and an LS 4-bolt throttle body adapter

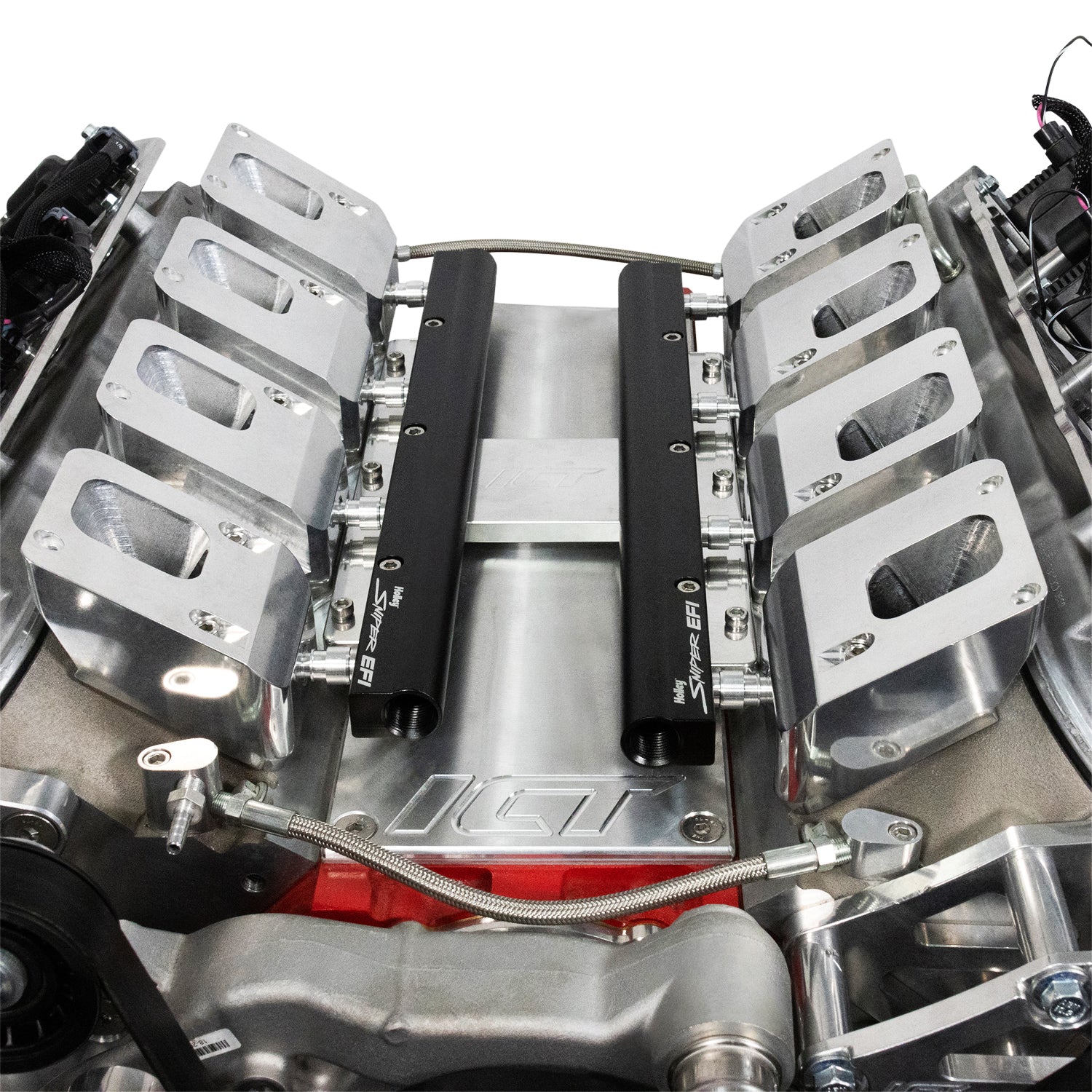

• This LS3 style injection system mounts in the valley under the supercharger for a clean, sleek look
• Full kit includes 2 intake adapters, fuel rail mounting bracket, -8orb fuel rails, LS throttle body rotation adapter, LT4 2.5" supercharger pulley and hub, billet gen 4 LS valley pan with oil pressure sensor adapter, and all seals and mounting hardware
• When installing- The new supercharger hub will press on, until it sits in the inner race of the snout bearing
• Compatible with LSA balancer (ICT #BAL301) and designed for dual belt setup: 8-rib supercharger belt + separate 6-rib accessory belt in Corvette (-1) spacing
